Shars 5" 6 Jaw Adjustable Universal Lathe Chuck .0005 TIR + Certificate NEW 202-6556 L[

To achieve the .0005" radial runout and repeatability, it's required to use the 4 micro adjustment set screws to true the designated ground bar stock, not the chuck body. Do not attempt to put the indicator on the outside diameter of the chuck body to dial it to zero first as this would create more runout on the bar stock. The adjustable chuck is intended to give high repeatability clamping on a particular bar stock size after the set screw adjustment. After the adjustment is made on a particular bar stock rod, for example 1/2", it's required to true the bar stock again when clamping a different size diameter, for example 1". Please refer to the back plate machine guide pdf file for more mounting instructionsSemi-steel chuck body made from high quality cast iron1 pinion design with each pinion ground and hardened to HRC 43Two piece jaw design with a master jaw and a top reversible jaw in American Standard tongue and groove specificationBoth side of jaw teeth and guides are ground and hardened to HRC 58-62Each set of jaws are serialized in their own setA serialized set of jaws are then finished, ground, and lapped on their designated chuck body which will be the same chuck body on the final assembly to achieve a greater accuracyBefore assembling the jaw to its designated chuck body, the jaw's finish machining are performed on a closed tolerance state of the art CNC machine from JapanScroll plate's thread flank are ground on both side to achieve a tighter contact with the master jawEach chuck has gone through rigorous accuracy and repeatability inspection with clamping and jamming multiple random testing rods or rings

• A matching back plate (sold separately) would need to be machined on the face and hub OD in order to fit this chuck. For detailed information, please look for the Shars back plate machining guide.

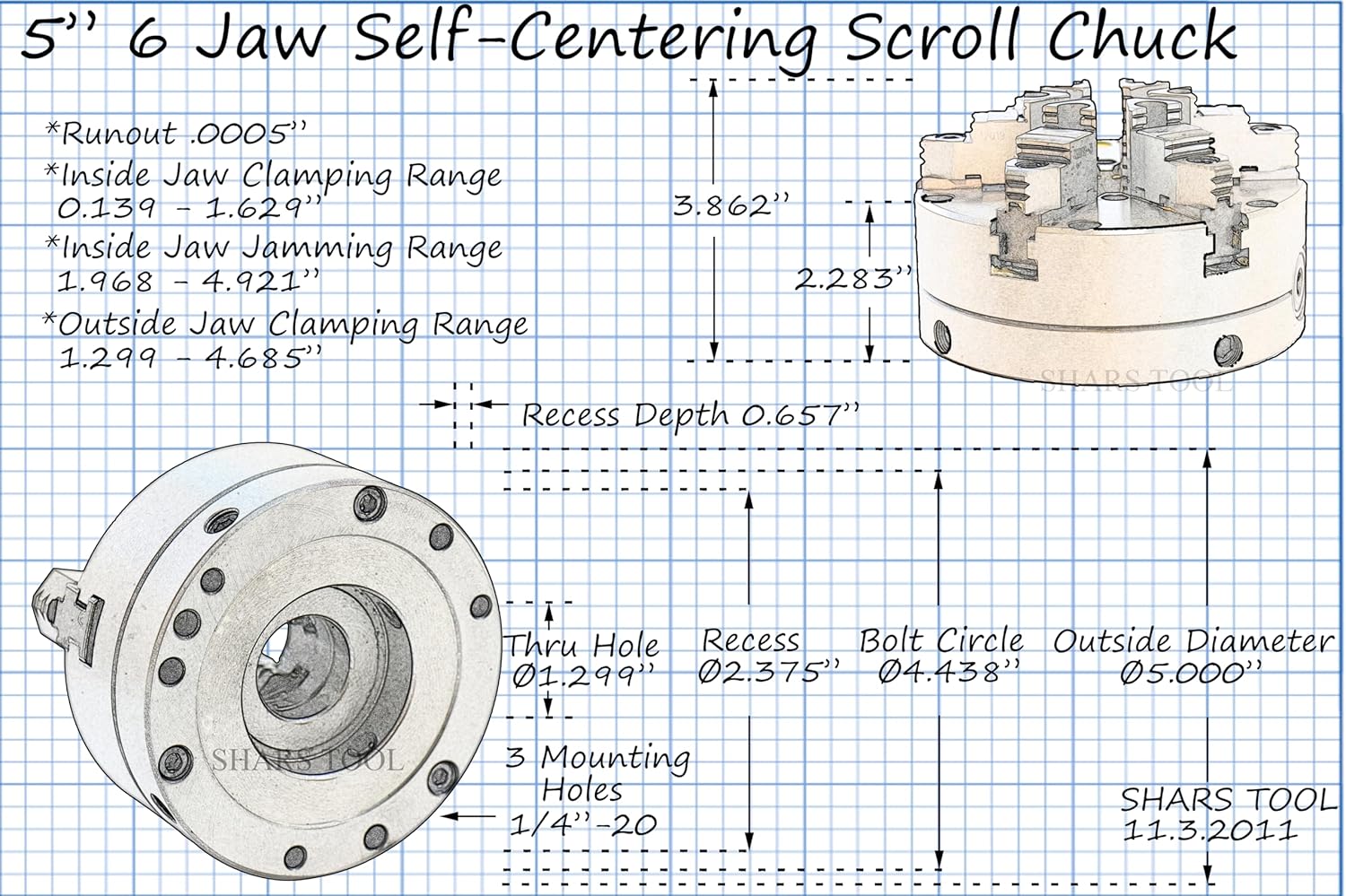

• Chuck Diameter: 5
• Thru Hole Size: 1.299
• Mounting: Plain Back
• Bolt Circle Diameter: 4.438
